BREADBOARD 3D

----SIMULATOR FEATURES----

• Realistic 3D Breadboard — Dual breadboard with authentic hole layout, power rails, and color-coded rows

• 20+ Components — Resistors, capacitors, LEDs (multiple colors), diodes, Zener diodes, bipolar transistors (NPN/PNP), UJT, SCR, potentiometers, inductors, diode bridges, ICs (6-16 pins), and switches

• Real-Time Simulation — Live voltage, current, and power calculations as you build

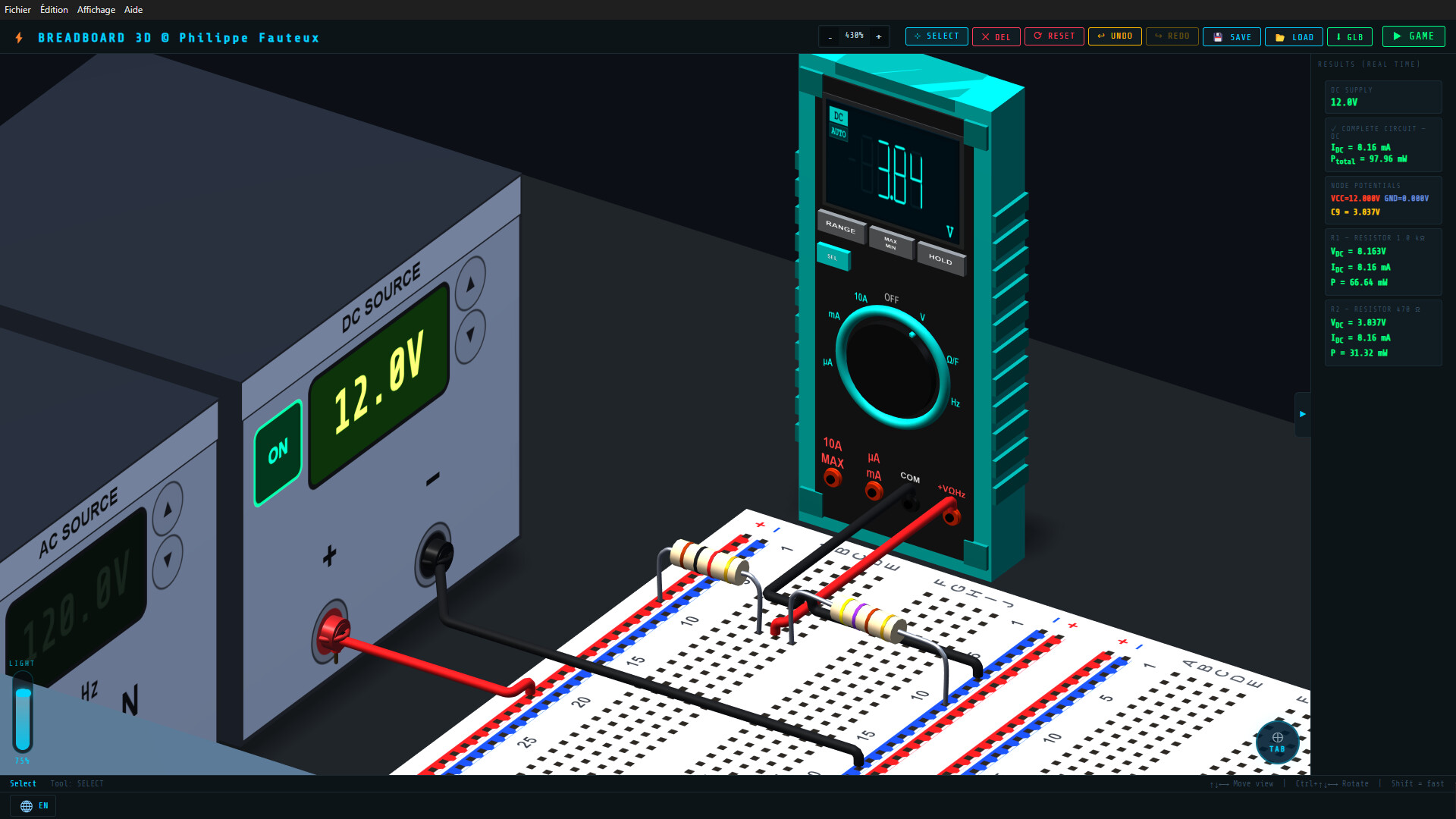

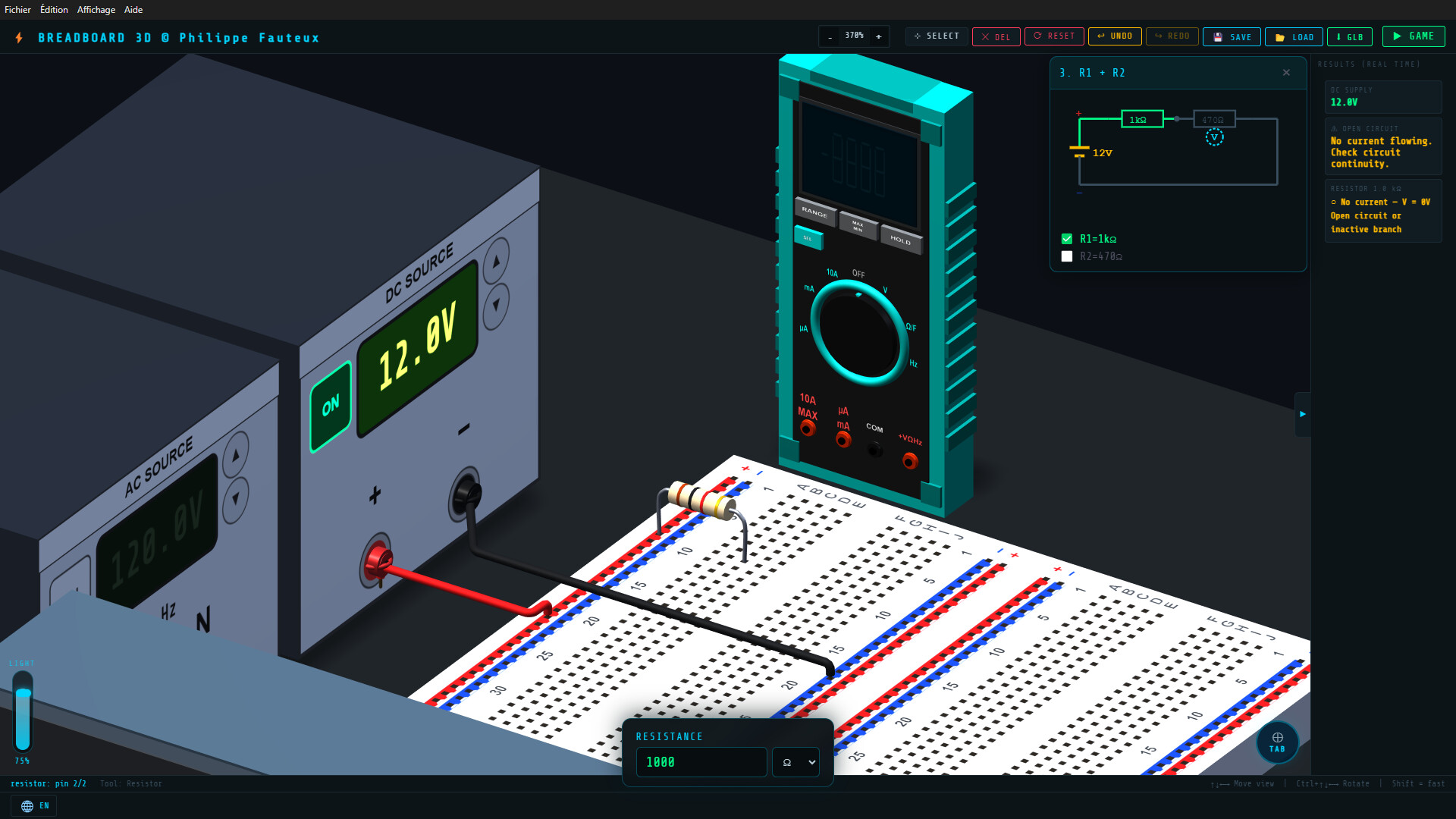

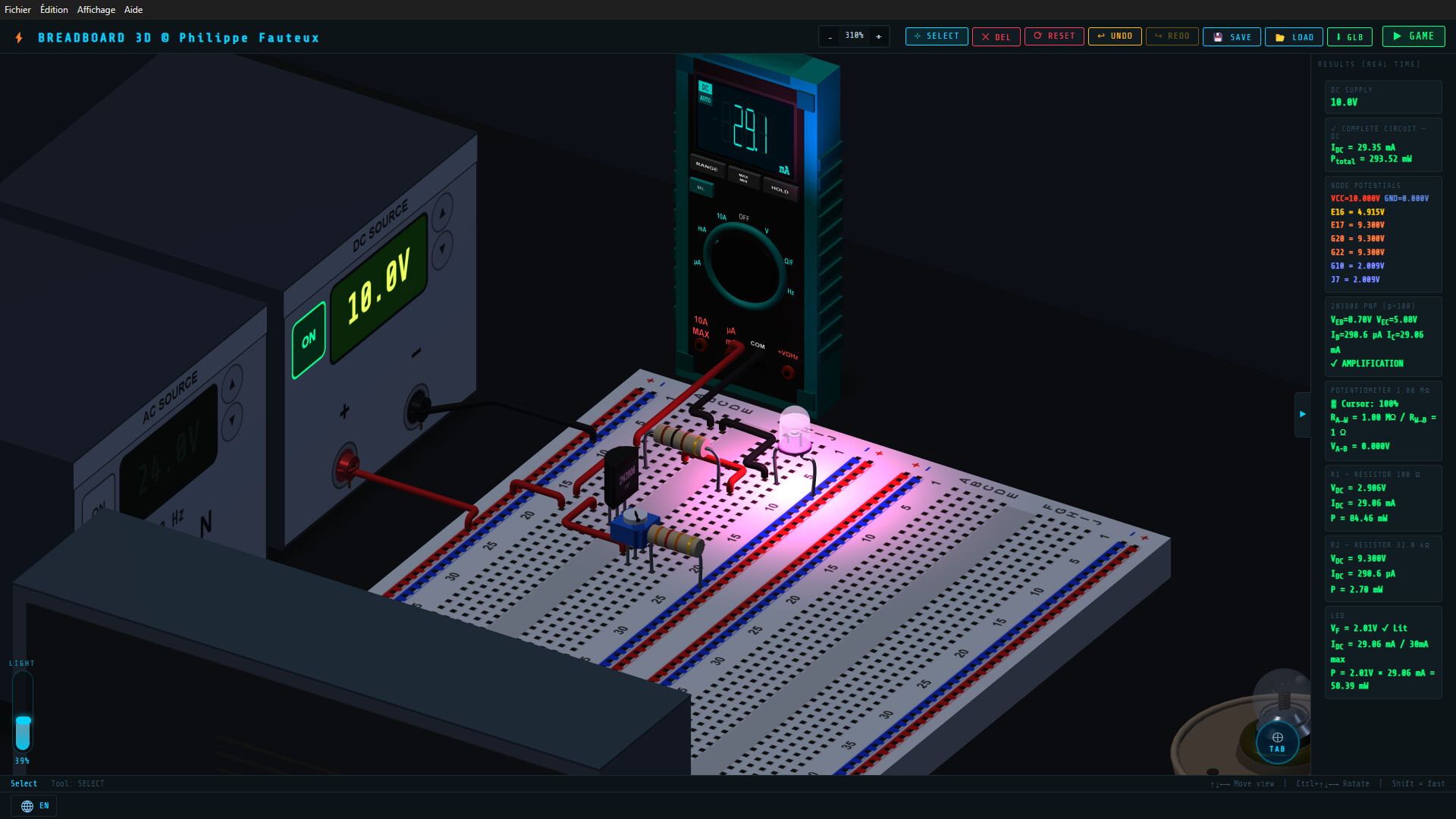

• Multimeter — Virtual multimeter with DC/AC modes, voltage, current, and resistance measurements

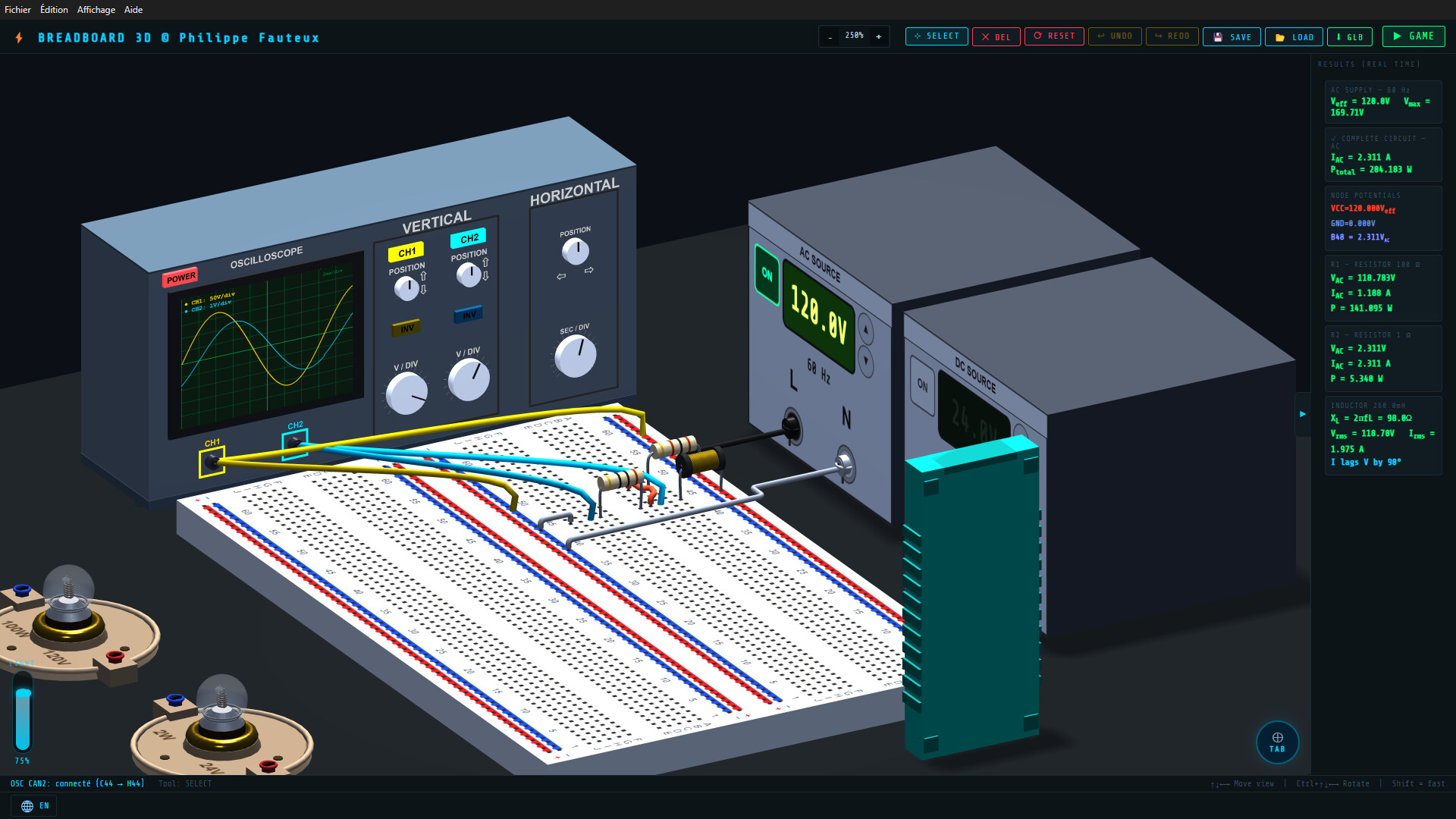

• Oscilloscope — Dual-channel oscilloscope with adjustable V/DIV and SEC/DIV

• DC & AC Power Supplies — Adjustable voltage sources

• GLB Export — Export your 3D circuit for use in other 3D applications

• Save & Load — Save your circuits and reload them anytime

• Light Dimmer — Adjustable ambient lighting for comfortable building

• Component Wheel — Quick component selection with TAB key

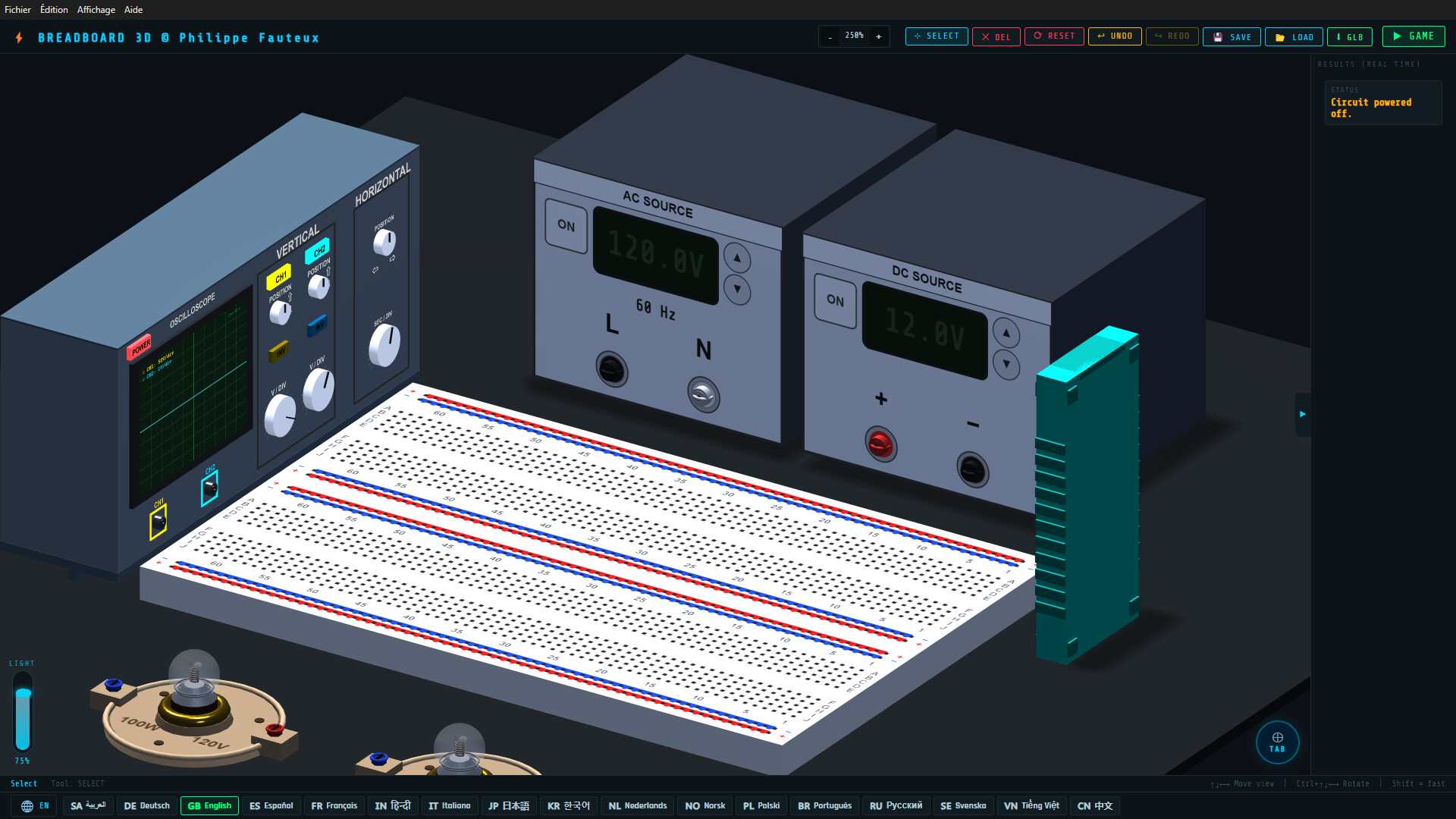

• 22 Languages — Full interface translation including FR, EN, ES, DE, JA, ZH, KO, and more

----PERFECT FOR----

• Students learning electronics

• Teachers demonstrating circuits

• Hobbyists prototyping before building simple circuits

• Anyone curious about how electronics work

----CONTROLS----

• TAB — Component selection wheel

• Click — Place components and wires

• Arrow keys — Move camera

• Ctrl+Arrows — Rotate view

• Ctrl+Z/Y — Undo/Redo

• F11 — Fullscreen
